Discrete and Stud Devices

Applications

TECHSEM discrete thyristors are mainly used in motor control, lightning control, phase control for heating systems and voltage regulations, high-power switching, ignition systems etc.

  • model
  • VDRM/VRRM (V)
  • IT(RSM) (A)
  • ITSM (kA)
  • Product appearance

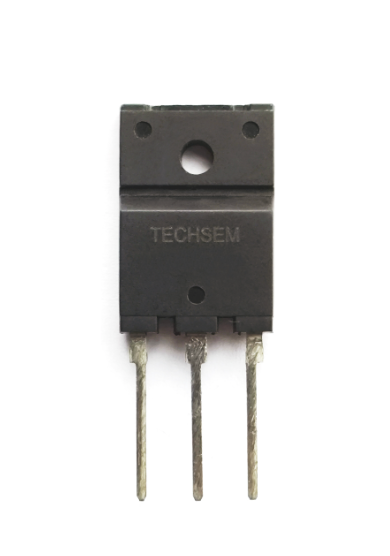

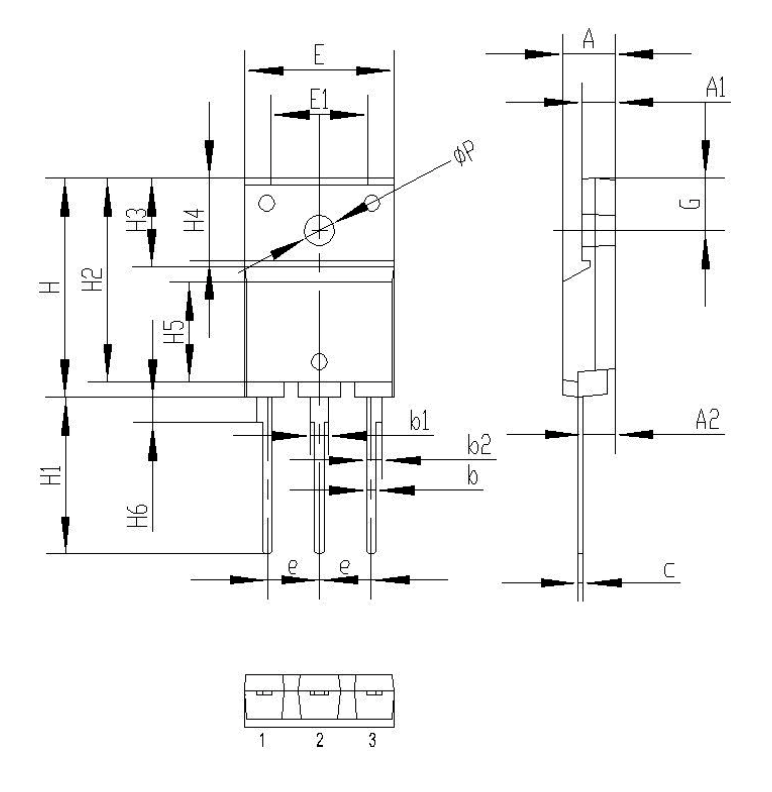

  • BCA60
    1600
    60
    0.6
    TO-3PF

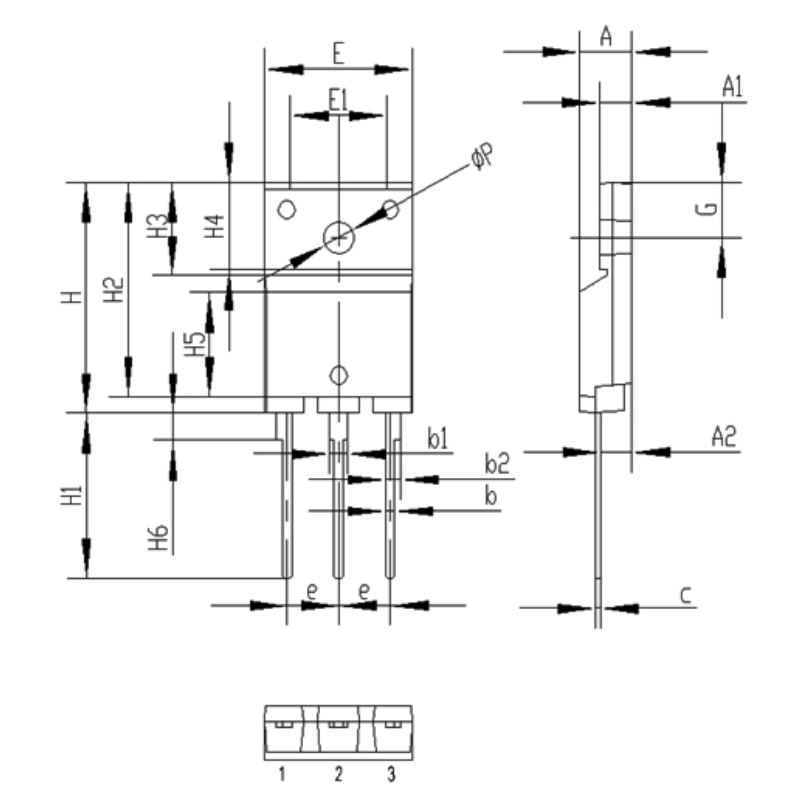

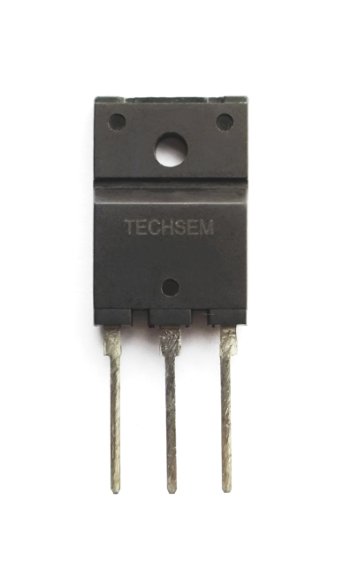

  • BCA80
    1600
    80
    0.5
    TO-3PF

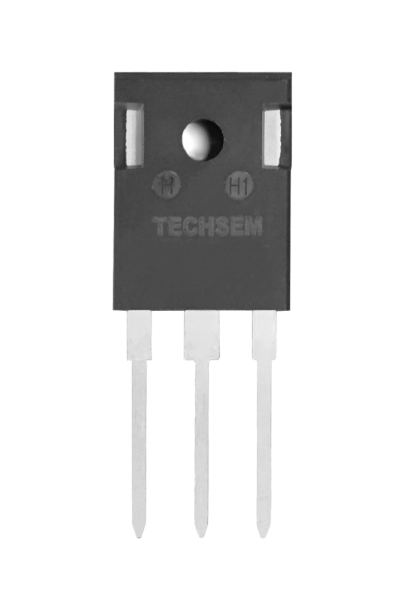

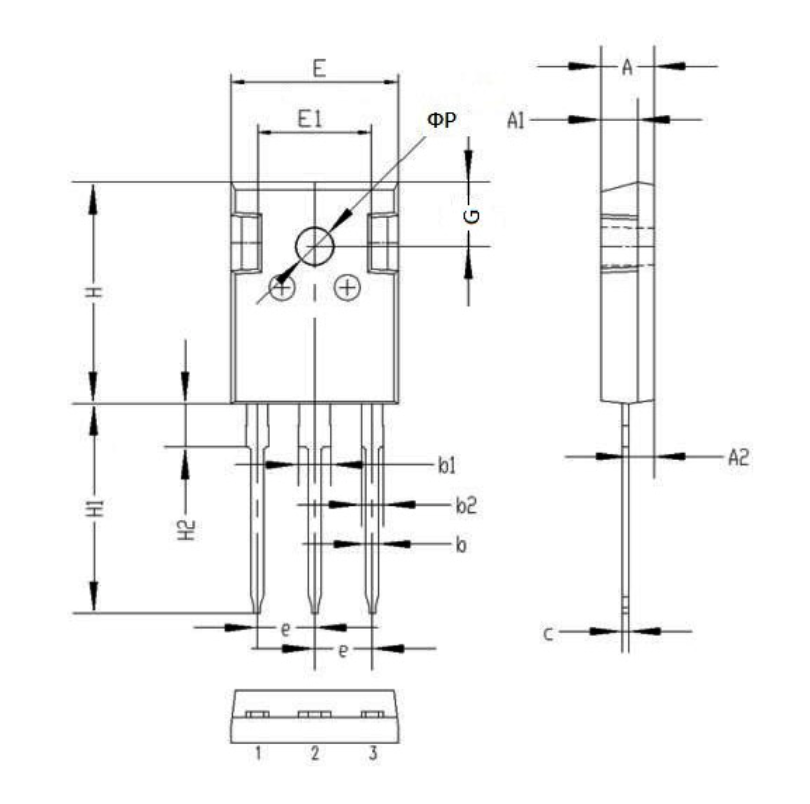

  • BCB60
    800-1800
    60
    0.6
    TO-247

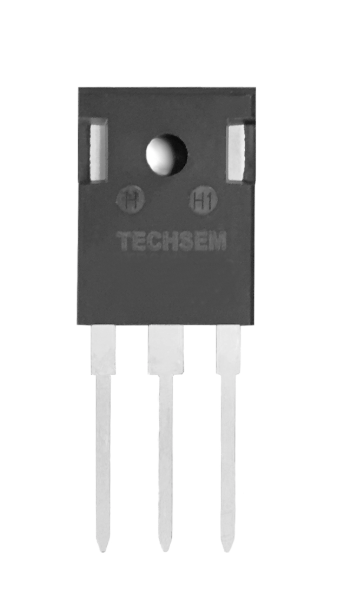

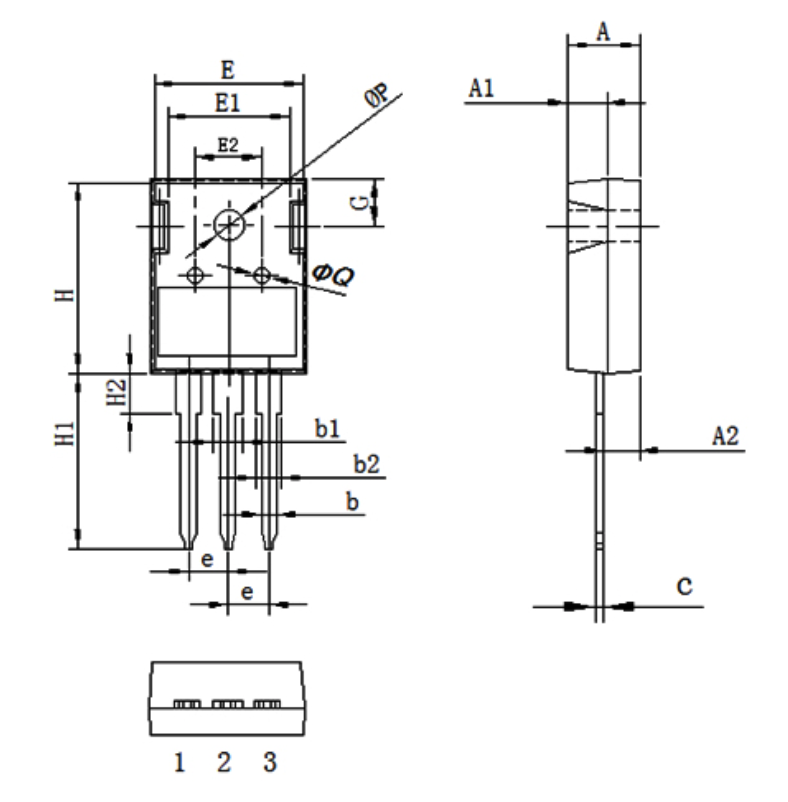

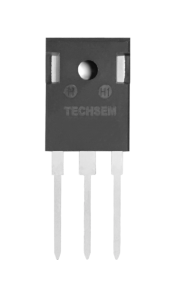

  • BCB75
    1200
    75
    0.6
    TO-247

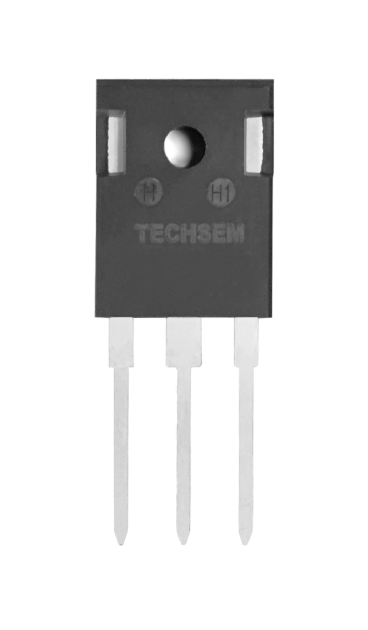

  • BCB75
    1600
    75
    0.6
    TO-247H

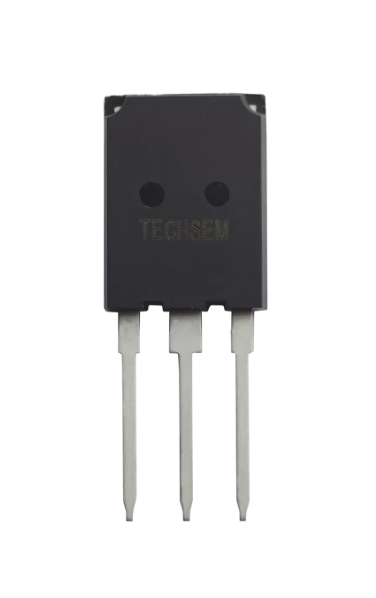

  • BCB90
    1600
    90
    1.4
    TO-247P
  • BTA41
    1600
    41
    0.41
    TO-3PF

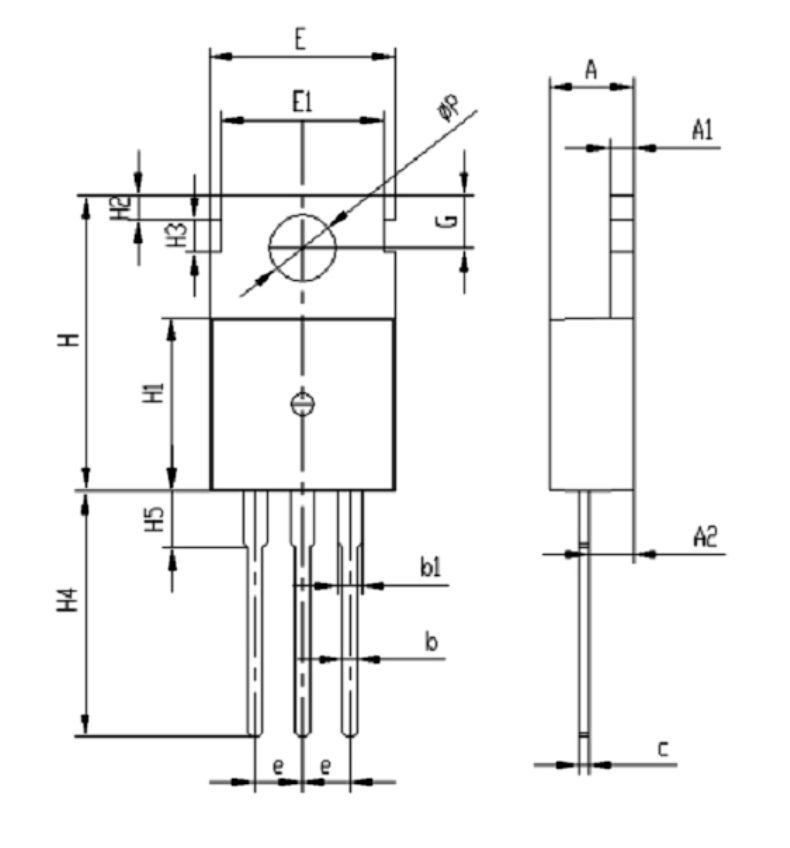

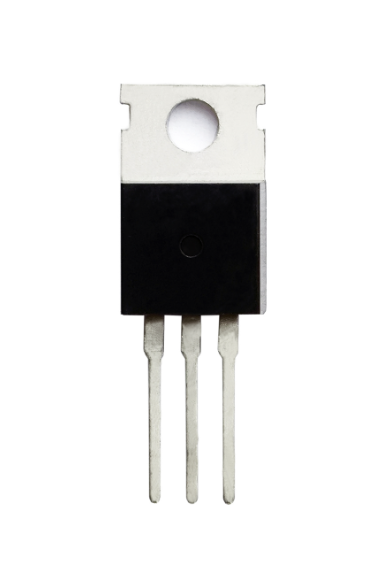

  • BTB24
    800
    24
    0.24
    TO-220C

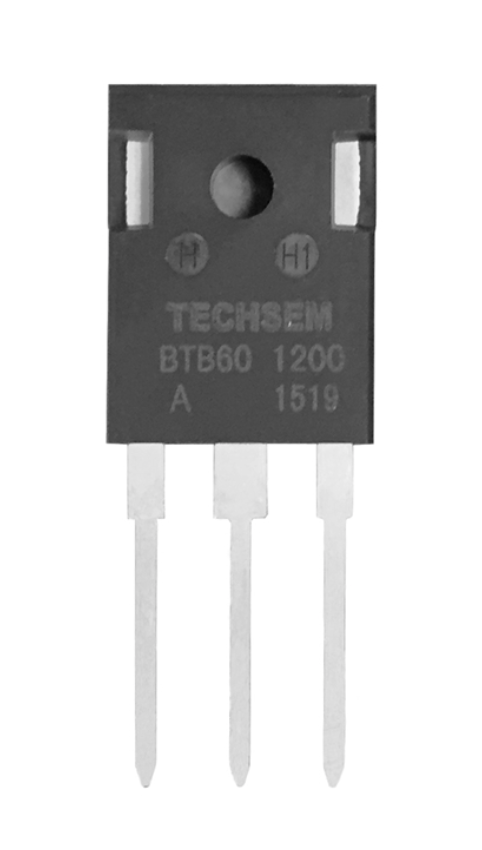

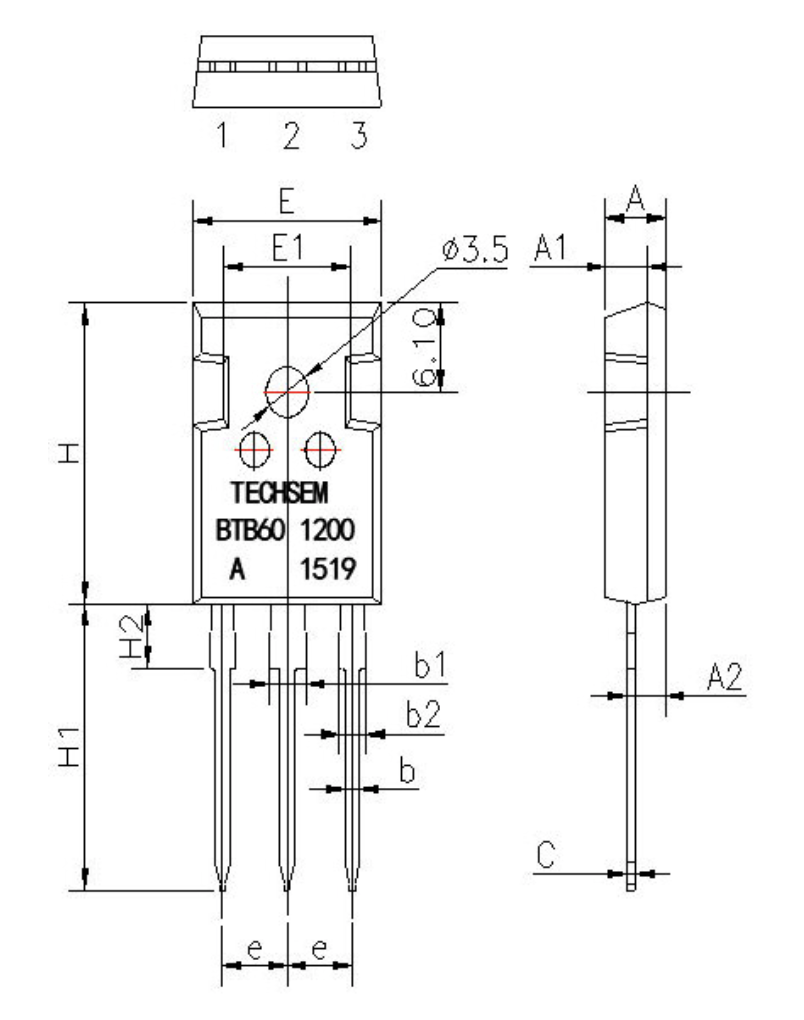

  • BTB60
    800-1800
    60
    0.6
    TO-247AA
Applications

TECHSEM discrete diodes are mainly used in rectifications, blocking diodes as protection from reverse voltage and inductive spikes, clipping and clamping for shaping voltage waveforms in signal processing circuits. Combined together with discrete thyristors, the diodes can also be used in power conversion and switching modules.

Produkte werden geladen...

Applications

As key components, TECHSEM discrete IGBTs are used in 3-level inverters, bridge inverters and PFC (Power Factor Correction) circuits. In addition, TECHSEM IGBTs are also used in uninterruptible power supplies (UPS), electrical welding, renewable energy and motor drives.

Produkte werden geladen...

Applications

The key applications for TECHSEM stud devices are particularly power rectification, industrial power supplies, large power sources, fast-switching and high current applications.
